Kavach Automatic Train Protection System and Odisha Train Accident

"Kavach: India's Shield of Safety - Preventing Tragic Accidents and Revolutionizing Railway Protection

4
628
Indian Railways
Representational image only
InnoMetro 2024 Delegate Registration

One of the worst rail accidents in the country, in which more than three hundred people were killed and more than thousands were injured when three trains collided one after the other on June 2 in Odisha’s Balasore district, has raised several questions about train safety and has necessitated the deployment of Automatic Train Protection systems for reliable train operations. India, too has an indigenously developed ATP (Automatic Train Protection System) called ‘Kavach’. Kavach is meant to be an advanced and innovative automated train technology that has been designed to assist the Indian Railways in achieving Zero Accidents. The train protection system, designed and developed by the Research Design and Standards Organisation (RDSO) in collaboration with the Indian industry and trials conducted and facilitated by the South Central Railway, has been mandated with the corporate objective of achieving safety in train operations across Indian Railways. It automatically activates the train braking system if the Driver fails to control the train within the speed limit.

Further, it prevents a collision between two locomotives equipped with an operational Kavach system. It is a certified Safety Integrity Level 4 (SIL-4) technology with an error rate of one in 10,000 years. When fully operational, Kavach will be the world’s cheapest autonomous train collision protection system, costing Rs. 50 lakh per kilometre to operate compared to over Rs. 2 crore globally. It also opens up opportunities for railways to export this indigenous technology.

On June 2, 2023, three Indian Railways trains, two express trains and a goods train, were involved in an awful incident that killed over 300 persons and injured over 1000 more. Trains 12841 Shalimar-Chennai Coromandel Express and 12864 SMVB – HWH Superfast Express were both derailed near the Bahanaga Bazaar Railway station in the Balasore district of Odisha at around 18.55 hrs. Following the tragic event, many people wondered why the indigenous anti-collision technology ‘Kavach’ did not prevent the accident from occurring

The Central Bureau of Investigation (CBI) is investigating the incident, as is a high-level railway committee led by the Chief Commissioner of Railway Safety, South Eastern Circle. The railway safety commissioner works for the Ministry of Civil Aviation and investigates all such occurrences.

Anti-Collision System in Indian Railways

Kavach is a train collision prevention system developed in India. This anti-collision technology minimises the likelihood of an error to a single error in 10,000 years. Railway Minister Ashwini Vaishnaw previously stated, ‘The indigenously-developed anti-collision system is SIL4 certified, which implies there is a likelihood of a single error in 10,000 years.’ In more technical terms, the Kavach technology is known as the Train Collision Avoidance System (TCAS) or the Automatic Train Protection System (ATP) system. Its goal is to reduce the number of rail accidents to zero. The technique has also achieved SIL4 certification, confirming that it can reduce errors to one in several years. The Kavach technology has proven its efficiency in several tests undertaken by Indian Railways, and the chances of the anti-collision system failing are nearly none. As a result, the question arises as to how the disaster occurred despite Indian Railways’ remarkable technology. The simple answer is that Kavach technology still needs to be set up on India’s entire train network, and this segment needs to be improved in Kavach technology.

Finance Minister Nirmala Sitharaman declared in Budget 2022 that Kavach Technology would defend India’s 2,000 kilometres railway network in the financial years 2022-2023. The Finance Minister stated in her announcement, ‘As part of Atmanirbhar Bharat, 2,000 kilometres of the rail network would be brought under the indigenous world-class technology Kavach in 2022-23, for safety and capacity augmentation.’ However, as the railway network spans more than 60,000 kilometres, it will take a while to deploy Kavach across India. That is why the priority sections of the railways are being worked on. Kavach is also designed to prevent head-on collisions between the engines of two trains coming on the same track. Train 12864 SMVT Bengaluru – Howrah Superfast Express derailed and crossed the adjacent track where the Coromandal Express was leaving.

While initial reports stated that the Coromandal Express train collided head-on with a goods train, causing four coaches of the superfast passenger train to derail, Railway officials denied this. The officials said that the Kavach technology possibly could not have functioned in this situation because all of the trains had derailed.

Kavach to boost safety on Indian Railways'! This indigenous technology  prevents trains from colliding | DH Latest News, DH NEWS, Delhi, Travel &  Tourism, Latest News, Travelmania, India, NEWS, Special , Kavach,

Working of Kavach

To prevent a collision, Kavach uses a network of devices mounted on two trains heading in opposite directions on the same track. Radio technologies and global positioning systems (GPS) are used to function the devices. This system avoids collisions by precisely evaluating the paths and trajectory of two trains at ‘collision risk’ and instantly activating the brake mechanism. Essentially, this system notifies loco pilots of any approaching train and automatically stops the train by deploying the emergency brakes. This occurs when two trains on the same track approach each other. However, in this case, one train derailed on another track, resulting in an accident.

When a loco pilot jumps a signal (Signal Passed at Danger — SPAD), which is the major cause of railway crashes, Kavach sends a warning. When it detects another train on the same line within a certain distance, the system can immediately inform the loco pilot, take control of the brakes and bring the train to a halt.

First Testing

The South Central Railway’s Gullaguda-Chitgidda Railway stations saw a successful trial of Kavach on March 4, 2022. Ashwini Vaishnaw, the railway minister, inspected the trial, which created a head-on collision situation with two locomotives moving towards one other. The Kavach system activated the automated braking mechanism and brought the locomotives 380 metres apart to a standstill. Crossing of the red signal was also tested, and the locomotive did not pass the red signal because KAVACH required the automatic deployment of brakes. The automatic whistle sound was loud and clear when the gate signal approached. As the locomotive approached the loop line, Kavach automatically decreased the speed to 30 kmph from 60 kmph.

BW Explained Everything About Kavach System In Railways - BW Businessworld

Highlighted features of Kavach

Some features which the Ministry has highlighted include:

  • Signal Passing at Danger (SPAD) prevention
  • Movement Authority is constantly updated with signal elements and features displayed in the Driver.
  • Loco Pilot operation cum Indication Panel (LPOCIP) / Driver Machine Interface (DMI).
  • Automatic Braking to prevent over-speeding.
  • Automated Whistling while approaching Level Crossing Gates
  • Collision avoidance between two locomotives equipped with operable Kavach.
  • SOS Messages during an emergency.
  • The Network Monitor System provides centralised live monitoring of train movements.

Deployment strategy for Kavach

During 2022-23, Indian Railways planned to install a Kavach protection system covering a distance of 2000 kilometres. Kavach will control over 34,000 kilometres of network. According to reports, Indian Railway High-Density Network and Highly Used Network routes carry nearly 96% of all railway traffic. The Railway Board is focusing its efforts on Kavach works in order to safely handle this traffic. The initial priority is high-density lines, such as New Delhi-Mumbai and New Delhi-Howrah portions for 160 kmph with Automatic Block Signalling and Centralised Traffic Control, because these sections have a higher risk of driver error as trains run closer to each other. The next priority is the Highly Used Networks with Automatic Block Signalling and Centralised Traffic Control. The third is on other high-density passenger routes with automatic block signalling. The fourth phase included all remaining routes. The system is supposed to be extended by 4,000 to 5,000 kilometres in FY24.

According to railway officials, 4G spectrum has been provided to Indian Railways, which will help to improve train reliability. However, according to the Minister’s response in the Lok Sabha, the total expense on the development of the Kavach anti-collision system is Rs. 16.88 crore. Kavach will be installed on the New Delhi-Howrah and New Delhi-Mumbai sections, with a completion deadline of March 2024. The initial implementation experience shall be used to take learning notes for future expansion. So far, 1,455 Rkm (Route Kilometres) of network route in South Central Railway has been brought under Kavach, of which 576 Rkm is in Maharashtra State, namely the Manmad (Excluding)-Dhamabad and Udgir-Parbhani sections. The Kavach System in the Ramtek Nagpur Parliamentary Constituency is yet to be covered. According to recent reports, the expenditure on Kavach is Rs.22 crore.

Conclusion

Kavach made headlines after the triple train clash in Odisha’s Balasore district. In a series of events, three trains crashed, killing approximately 300 people and injuring over 1000 more. Many people believe that Kavach could have averted the accident in the aftermath of the incident. However, according to a Railways statement, Kavach was unavailable on this route. After the incident, the rescue and restoration works on the route were concluded on a priority basis. The section was cleared for train operation after fifty-one hours of the mishap.

Experts View on Kavach and Orissa Train Accident.

However, rail experts believe Kavach could not have prevented the tragedy of Balasore. According to Sudhanshu Mani, the brain behind Vande Bharat Express, Kavach could not have prevented the terrible Balapore tragedy. He also underlined the importance of upgrading India’s railway track infrastructure. ‘Kavach could not have prevented the accident. This is not a case of signalling failure at first glance. The first train derailment is the root cause. ‘The government should look into why the first train derailed,’ said Sudhanshu Mani. ‘The Coromandel Express driver could not have applied the brakes when he observed the obstacle because the train was moving at high speed,’ he added.

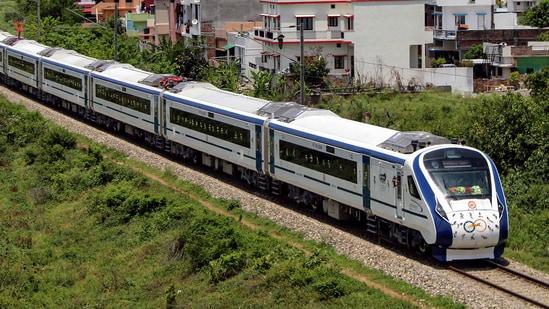

Vande Bharat Express trains now operational on 23 routes in India. See full  list | Latest News India - Hindustan Times

Kavach Automatic Train Protection System in India

Kavach is a cutting-edge electronic safety device developed by the Research Design and Standards Organisation (RDSO) in collaboration with the Indian industry that can help locomotive pilots avoid Signal Passing At Danger (SPAD) and overspeeding. Furthermore, it also supports train operations during bad weather conditions such as severe fog. The device enables improved control over train speed and eliminates potential accidents by automatically deploying brakes when necessary.

Kavach not only assists locomotive drivers in avoiding missed warning signals and controlling speed but also assures trains run safely in low-visibility conditions. Railway Minister Vaishnaw personally tested the ‘Kavach’ mechanism and tweeted about its use for extension. ‘The rear-end accident testing was a triumph. ‘Kavach autonomously stopped the locomotive ahead of another locomotive by 380 metres,’ Vaishnaw tweeted in March 2022.

Kavach trials were conducted on the South Central Railway’s Lingampally-Vikarabad-Wadi and Vikarabad-Bidar sections. The Centre, which spent Rs 16.88 crores developing Kavach, envisages its rollout on the New Delhi-Howrah and New Delhi-Mumbai sections, with a completion date of March 2024.
